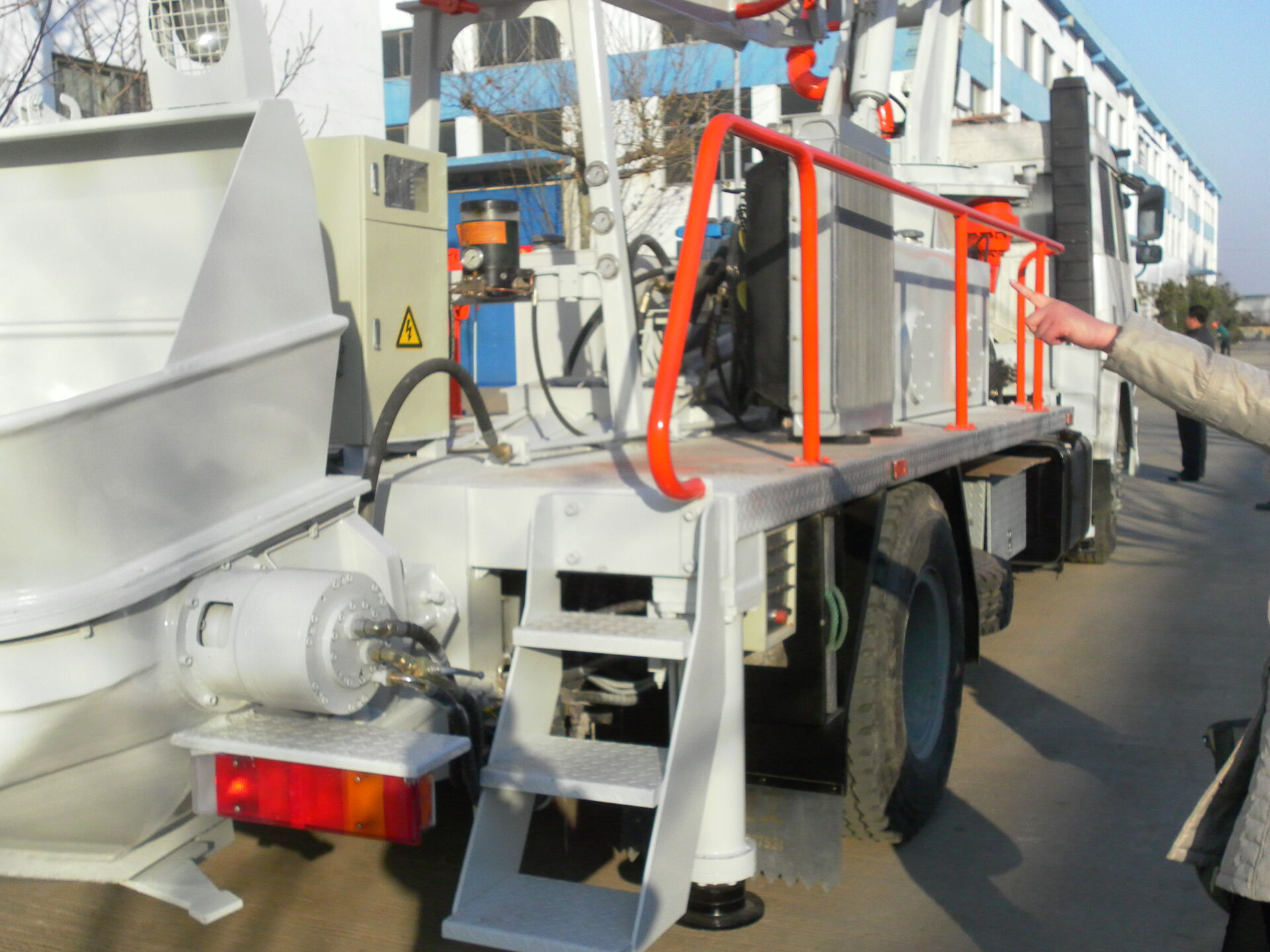

| Model |

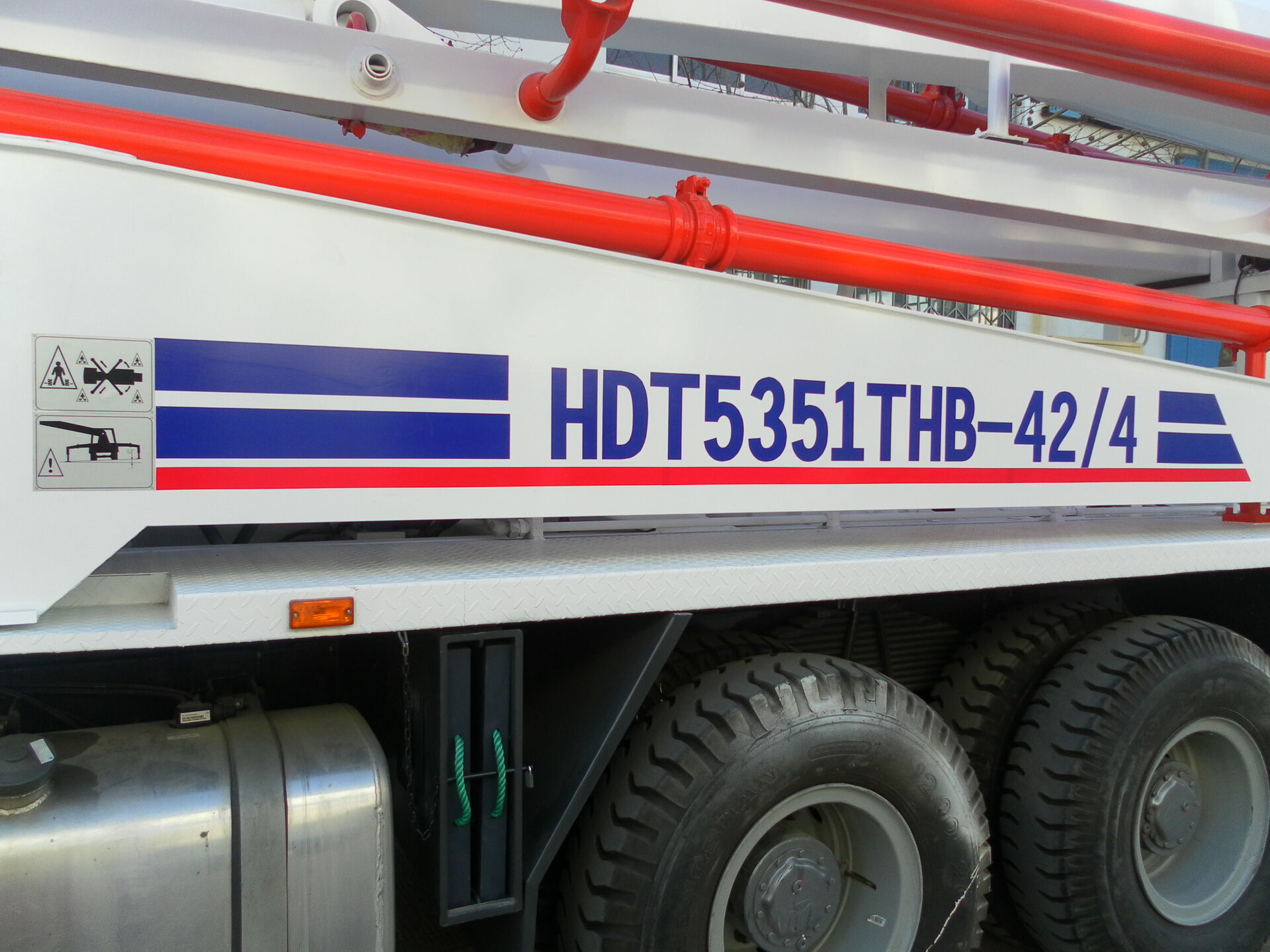

| HT5350THB-42/4 |
| output in theory | m3/h | 125 |
| Index of the pump carry capacity | Mpa.m3/h | 586 |
| Theoretic pumping pressure | Mpa | 8.5 |
| Bucket volume | L | 700 |
| Height of top surface of bucket | mm | 1400 |
| Model of dirstribution valve |
| S Valve |
| Max. operation radius | m | 38 |
| Max. operation height | m | 41.8 |
| Max. operation depth | m | 29 |
| Open height of boom | mm | 8600 |
| Distance between front landing legs | mm | 8820 |
| Distance between rear landing legs | mm | 8500 |
| Distance between front & rear landing legs | mm | 8490 |
| Diameter of delivery pipe | mm | 125 |
| Length of hose pipe | m | 3 |
| Rotary range of boom |
| 365° |
| Quantity of boom |
| 4 |
| Rotary angle of each boom | ° | 92/180/180/240 |
| Wire line control distance | m | 33 |
| Romote control distance | m | 200 |
| Max. speed | km/h | 85 |
| Min. turn radius | mm | 12100 |
| Brake distance | m | 10 |
| Approach angle | ° | 16 |
| Departure angle | ° | 11 |
| Chassis model |
| HOWO ZZ5437S4667C |
| Wheel base between the first & the second axle | mm | 1800 |
| Wheel base between the second & the third axle | mm | 4600 |
| Wheel base between the third & the fourth axle | mm | 1350 |
| Front tread | mm | 2022 |
| Rear tread | mm | 1830 |
| Max. engine output power | kw | 275(2200r/min) |
| Max. engine output torque | n.m | 1500 /(1100~1600 r/min) |
| Max, gradient ability | % | 37 |
| Fuel consumption | L/100km | 38 |
| Dimension(L×W×H) | mm | 13650×2490×3960 |
| Total weight | kg | 35000 |
