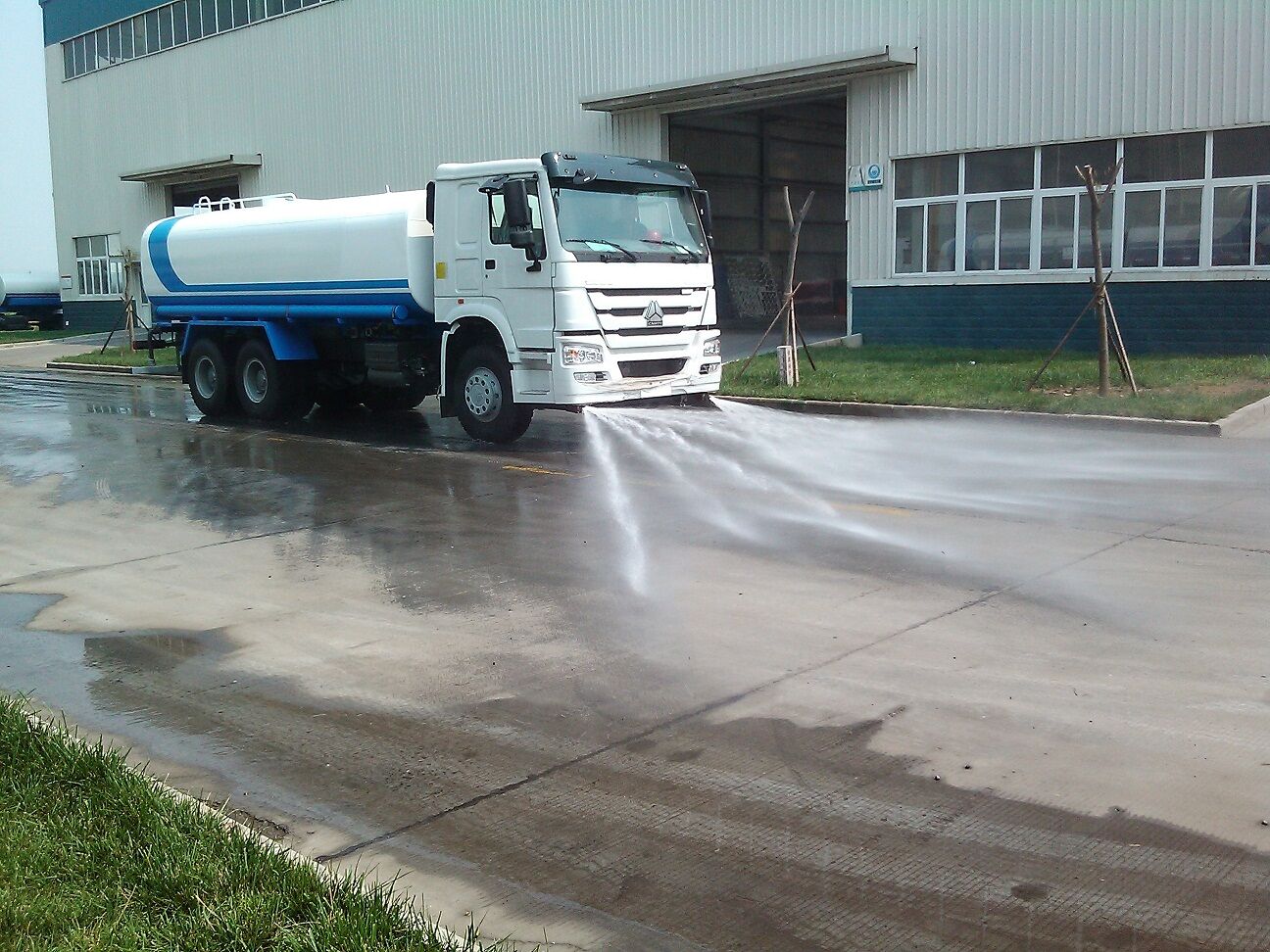

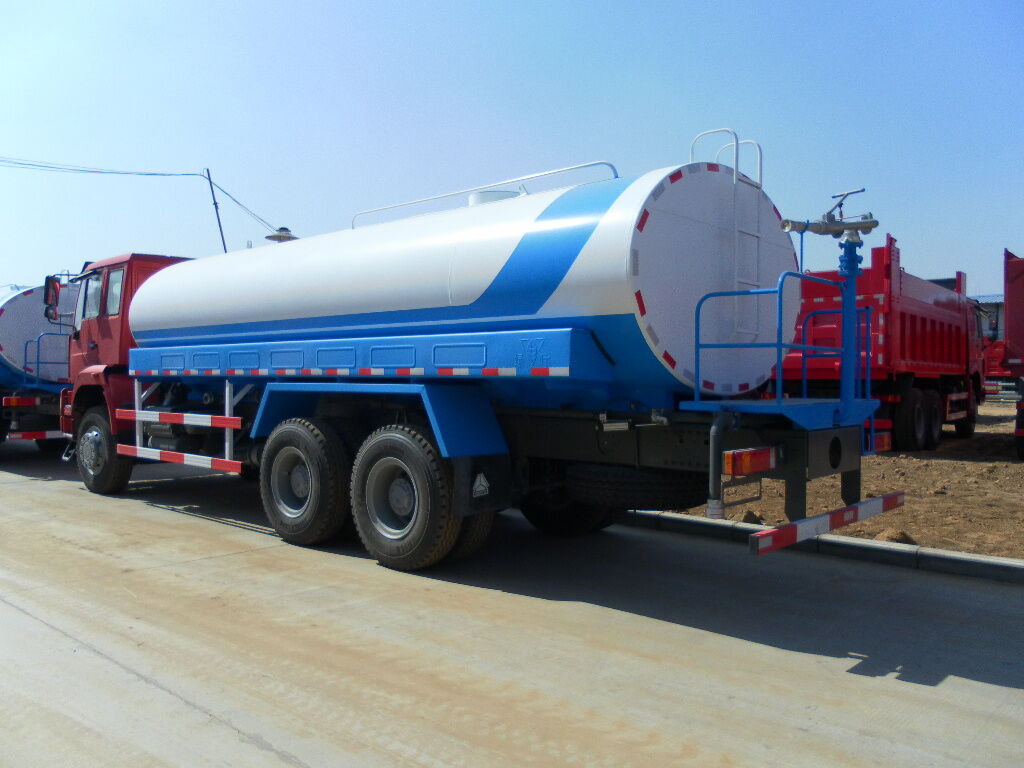

| 6x4 HOWO Water Tank Truck |
| Key Performance | 290HP Engine |
| Water tank capacity:12—25m³ for optional, anticorrosive material. |
| Thickness of tank: 5mm |
| With front jet,, sprinkler, high-pressure water jet, high-pressure wash-out valve, standard wash-out valve, automatic suction device, water absorption tube, guard rail and bumper. |
| Performance | Gross weight | 25000 Kg |
| Chassis dead weight | 10870Kg |
| Wheel base | 4300mm+1350mm |
| Overall dimension | 9800×2496×3215mm |
| Front overhang/Rear overhang | 1500/2625 |
| Front wheel track | 2022 |
| Rear wheel track | 1830 |
| Approach/Departure angle | 16/15° |
| Max. driving speed | 102Km |
| Fuel consumption(L/100km) | 35.8 |
| Engine | Make: SINOTRUK |
| Engine model: : WD615.87, Euro II emission standard |
| Maximum output: 290hp(213Kw) at 2200 rpm according to DIN |
| Maximum torque: 1160Nm at 1100~1600 rpm |
| 4 stroke direct injection diesel engine,6 cylinder in-line with water cooling, turbo-charging & inter cooling |
| Bore: 126mm; Stroke: 130mm; |
| Displacement: 9.726L; Compression ratio: 17:1 |
| Cooling system filling quantity (long-term filling): 40L |
| Option: |
| Thermostat with 71 °C opening begin |
| Silicon oil fan |
| Transmission | HW19710, 10 forward and 2 reverse. With HW70 power takeoff |
| Clutch | 430B Type, famous brand. |
| Driving axle | MCY13. Central single stage reduction, welded and stamped axle housing |
| Load capacity: 13ton. Ratio: 4.11 |
| Front axle | HF7 drum brakes, load capacity: 7ton |
| Steering box | ZF8098 hydraulic steering with power assistance |
| Cab | SINOTRUK HW76 Lengthen cab, left hand driving , with air conditioner, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, right hand driving for optional. 4-point support fully floating suspension with shock absorber. |
| Air conditioner | Yes |
| Tire | 295/80R22.5, 11.00R20 for optional. |
| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm and reinforced sub frame, |
| With one spare wheel |
| Rear spring: 12pcs, front spring:10pcs |
| Remarks | Exhaust pipe up | Yes, optional |
| Alert sound when back up | Yes, optional |
| Enhanced backboard beam | Yes, optional |
| Alert light | Yes, optional |
