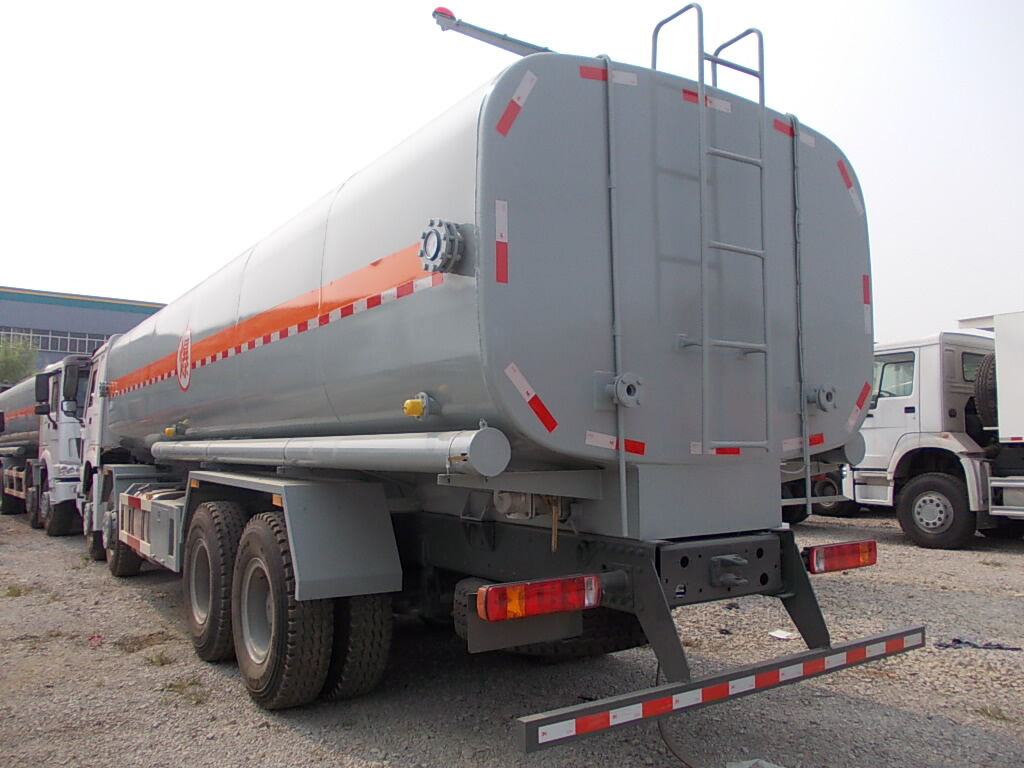

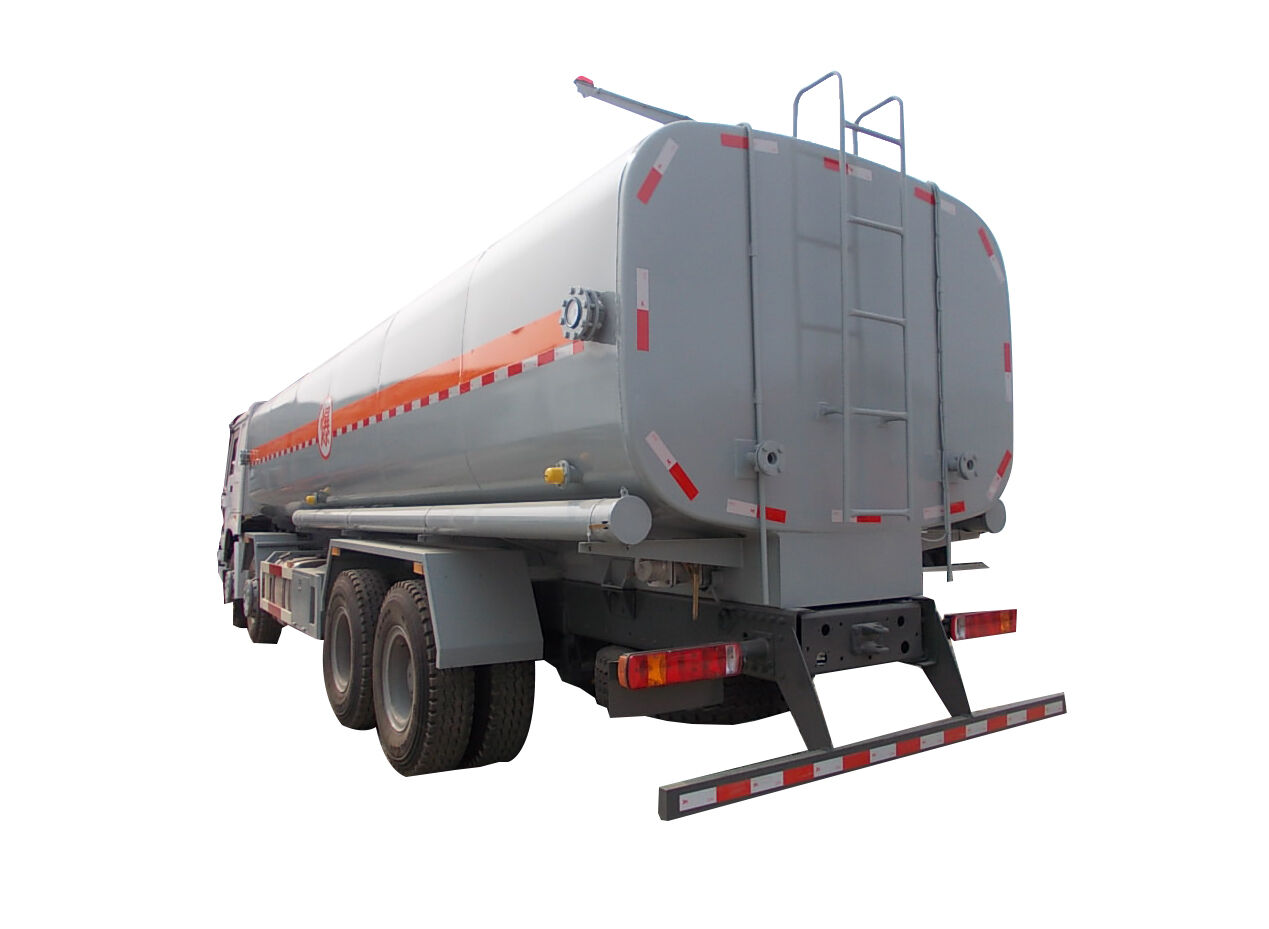

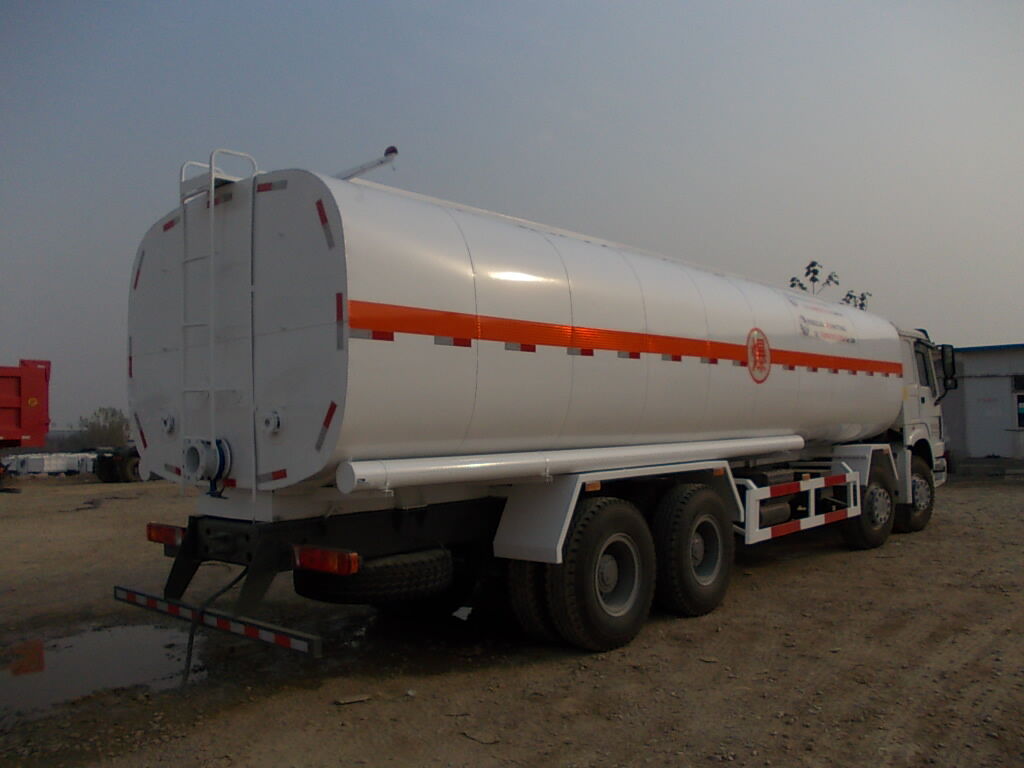

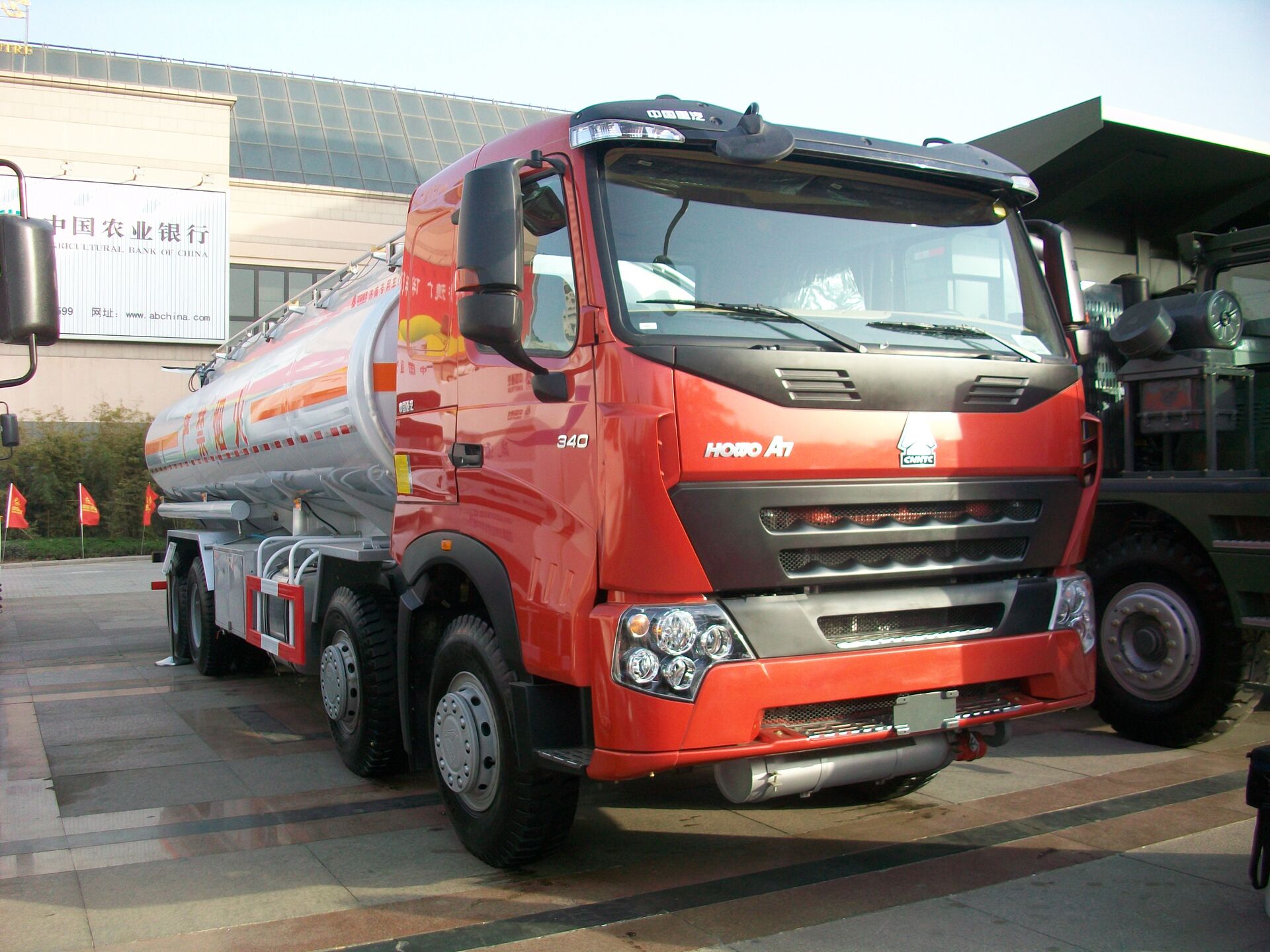

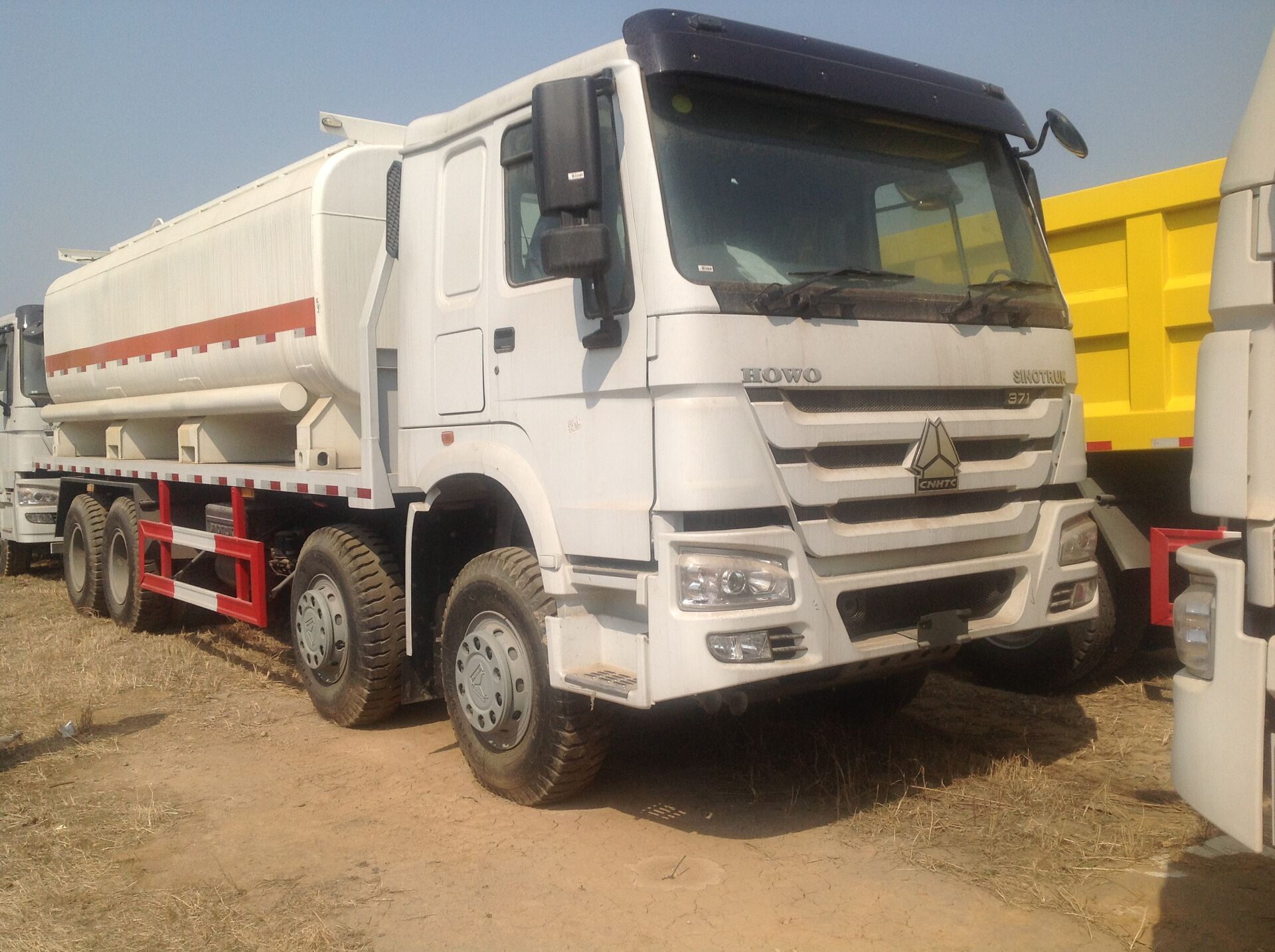

| 8x4 HOWO Water Tanker Truck |
| Key Performance | ZZ1317N4667 chassis, 336HP Engine |
| Oil tank capacity:23—35m³ for optional, anticorrosive material. |
| Thickness of tank: 5mm; Thickness of front plate, 6mm |

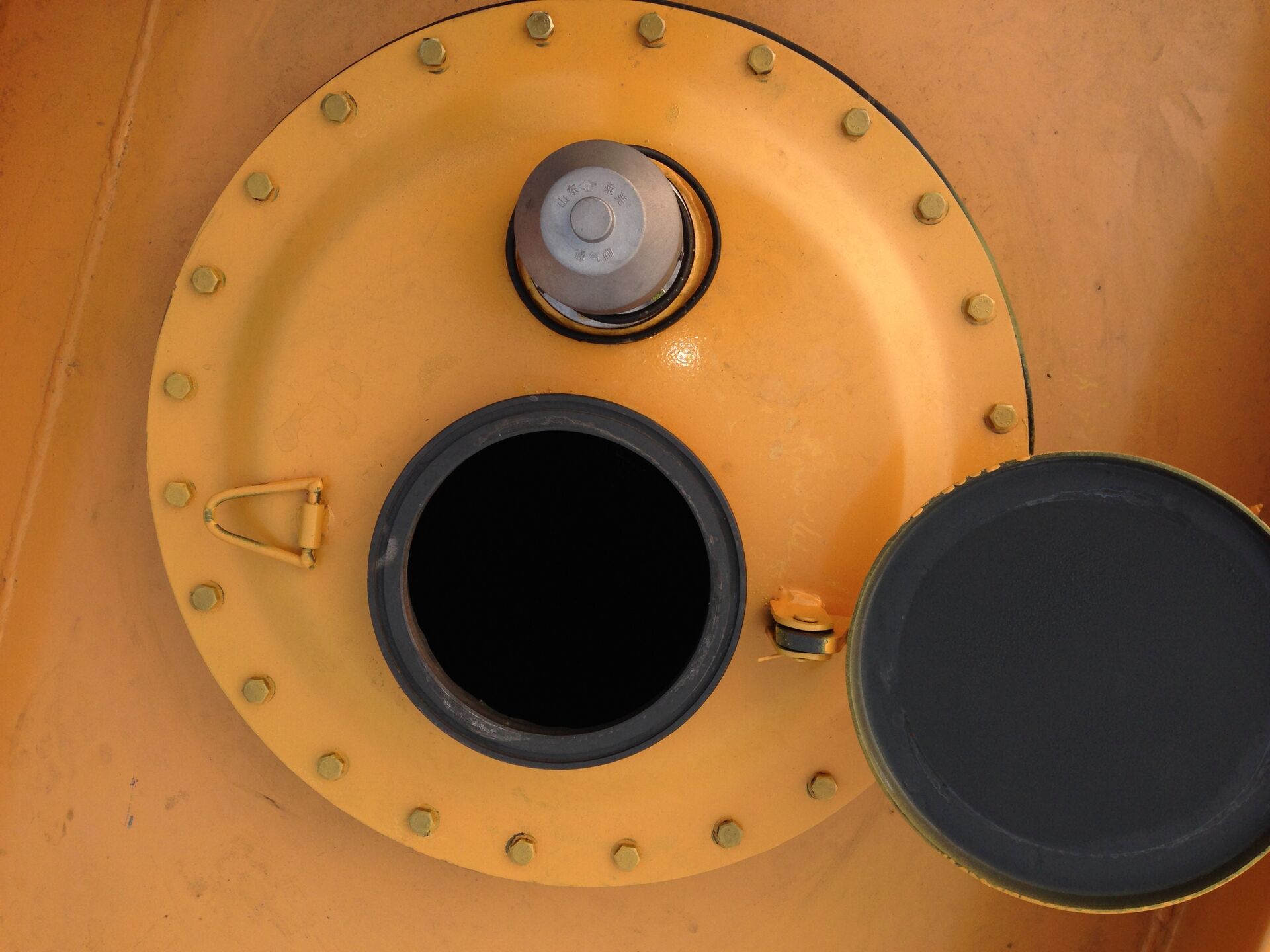

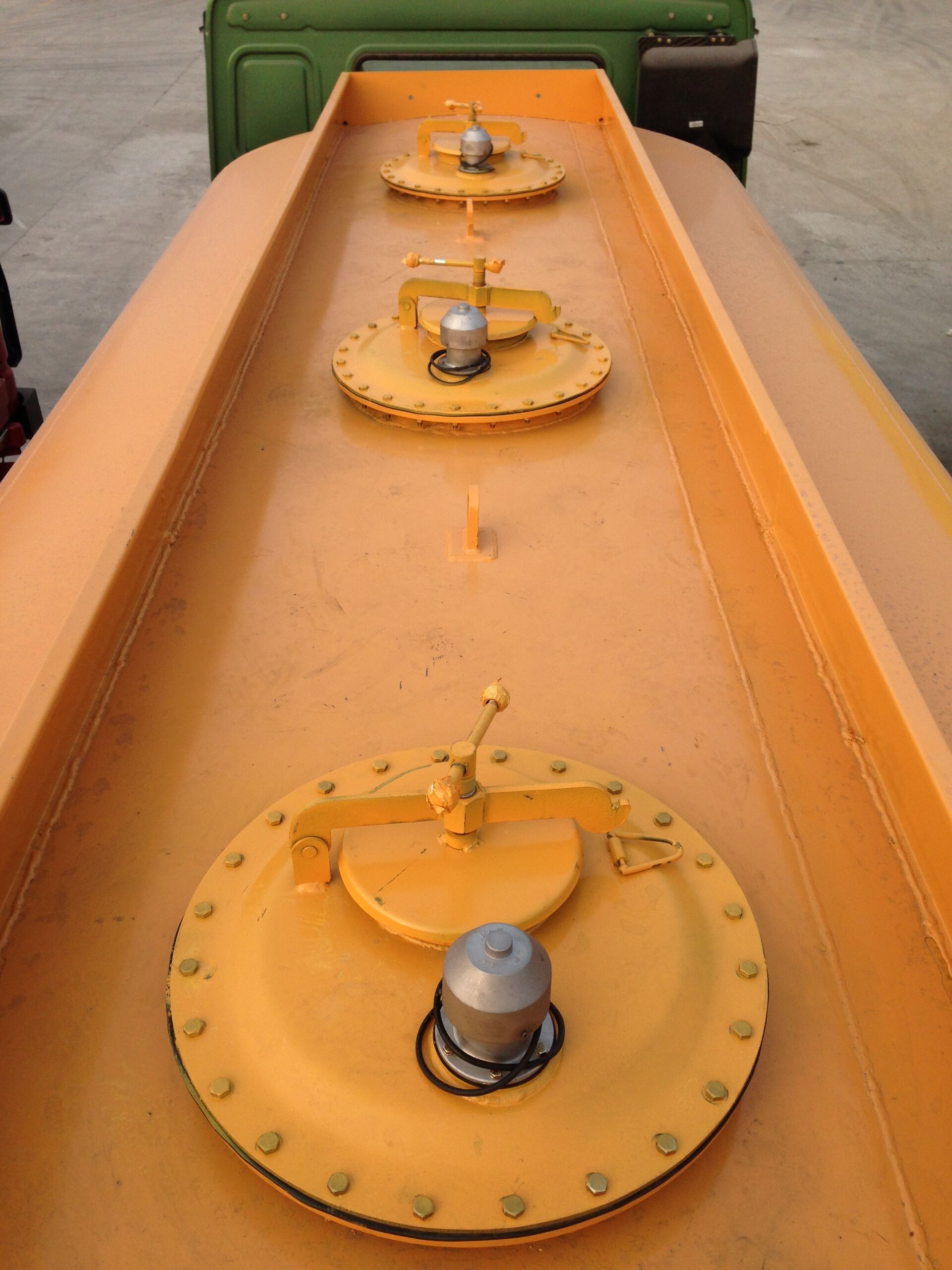

| With oil pump, oil loading and discharging system. Equipment opting China standard or EURO or US standard. The tank could be separated several compartment. Also could modify in refuel or transport fuel tank truck. |
| Performance | Gross weight | 31000 Kg |
| Chassis dead weight | 13560Kg |
| Wheel base | 1800mm+4600mm+1350mm |
| Overall dimension | 11984×2496×3215mm |
| Front overhang/Rear overhang | 1500/2734 |
| Front wheel track | 2022 |
| Rear wheel track | 1830 |
| Approach/Departure angle | 16/14° |
| Max. driving speed | 102Km |
| Fuel consumption(L/100km) | 41.4 |
| Engine | Make: SINOTRUK |
| Engine model: : WD615.69, Euro II emission standard |
| Maximum output: 336hp(247Kw) at 2200 rpm according to DIN |
| Maximum torque: 1350Nm at 1100~1600 rpm |
| 4 stroke direct injection diesel engine,6 cylinder in-line with water cooling, turbo-charging & inter cooling |
| Bore: 126mm; Stroke: 130mm; |
| Displacement: 9.726L; Compression ratio: 17:1 |
| Cooling system filling quantity (long-term filling): 40L |
| Option: |
| Thermostat with 71 °C opening begin |
| Silicon oil fan |
| Transmission | HW19710, 10 forward and 2 reverse. With HW70 power takeoff |
| Clutch | 430B Type, famous brand. |
| Driving axle | HC16. Central double reduction, casting axle housing |
| Load capacity: 16ton. Ratio:4.8 |
| Front axle | HF9 drum brakes, load capacity: 9ton |
| Steering box | ZF8118 hydraulic steering with power assistance |
| Cab | SINOTRUK HW76 Lengthen cab, left hand driving , with air conditioner, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, right hand driving for optional. 4-point support fully floating suspension with shock absorber. |
| Air conditioner | Yes |
| Tire | 315/80R22.5, 12.00R20 is optional. |
| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm and reinforced sub frame, |
| With one spare wheel |
| Rear spring: 12pcs, front spring:10pcs |
| Remarks | Exhaust pipe up | Yes, optional |
| Alert sound when back up | Yes, optional |
| Enhanced backboard beam | Yes, optional |
| Alert light | Yes, optional |
