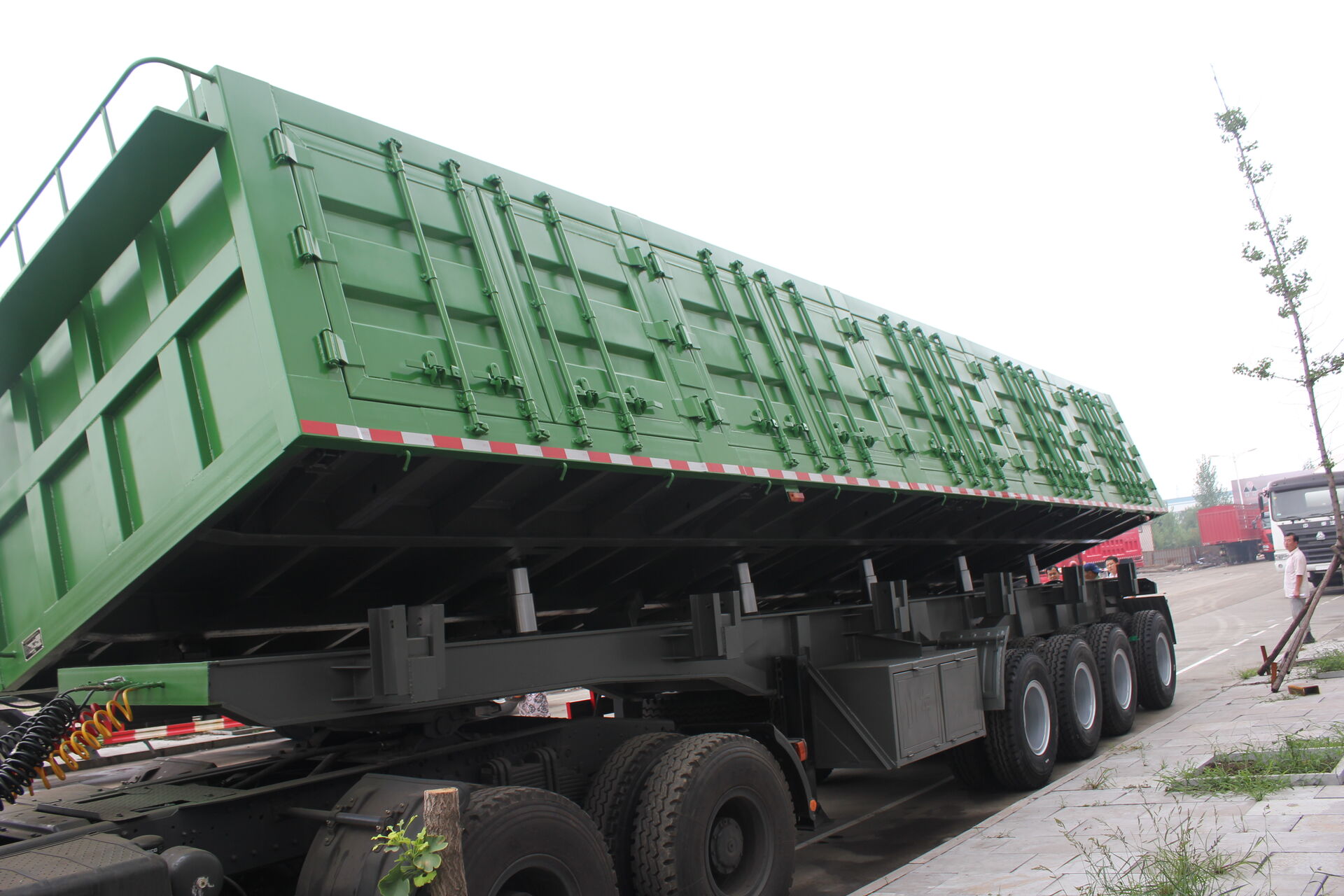

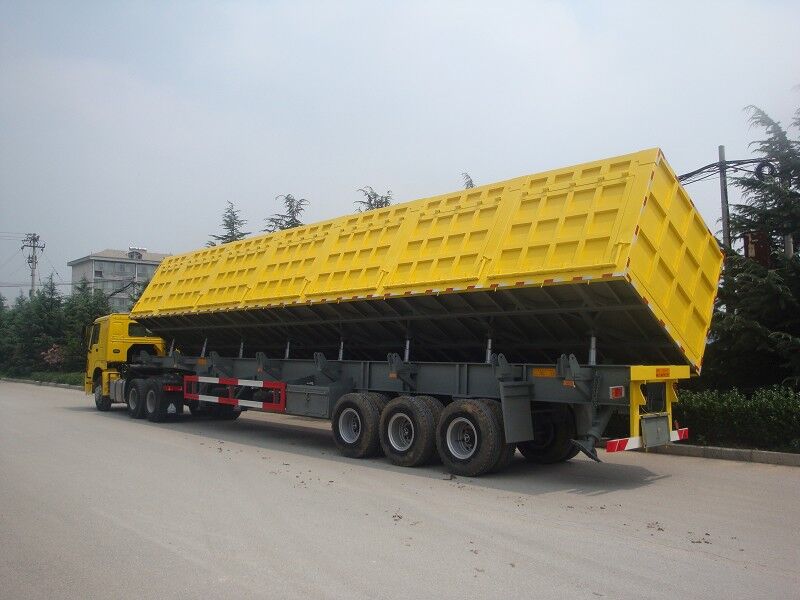

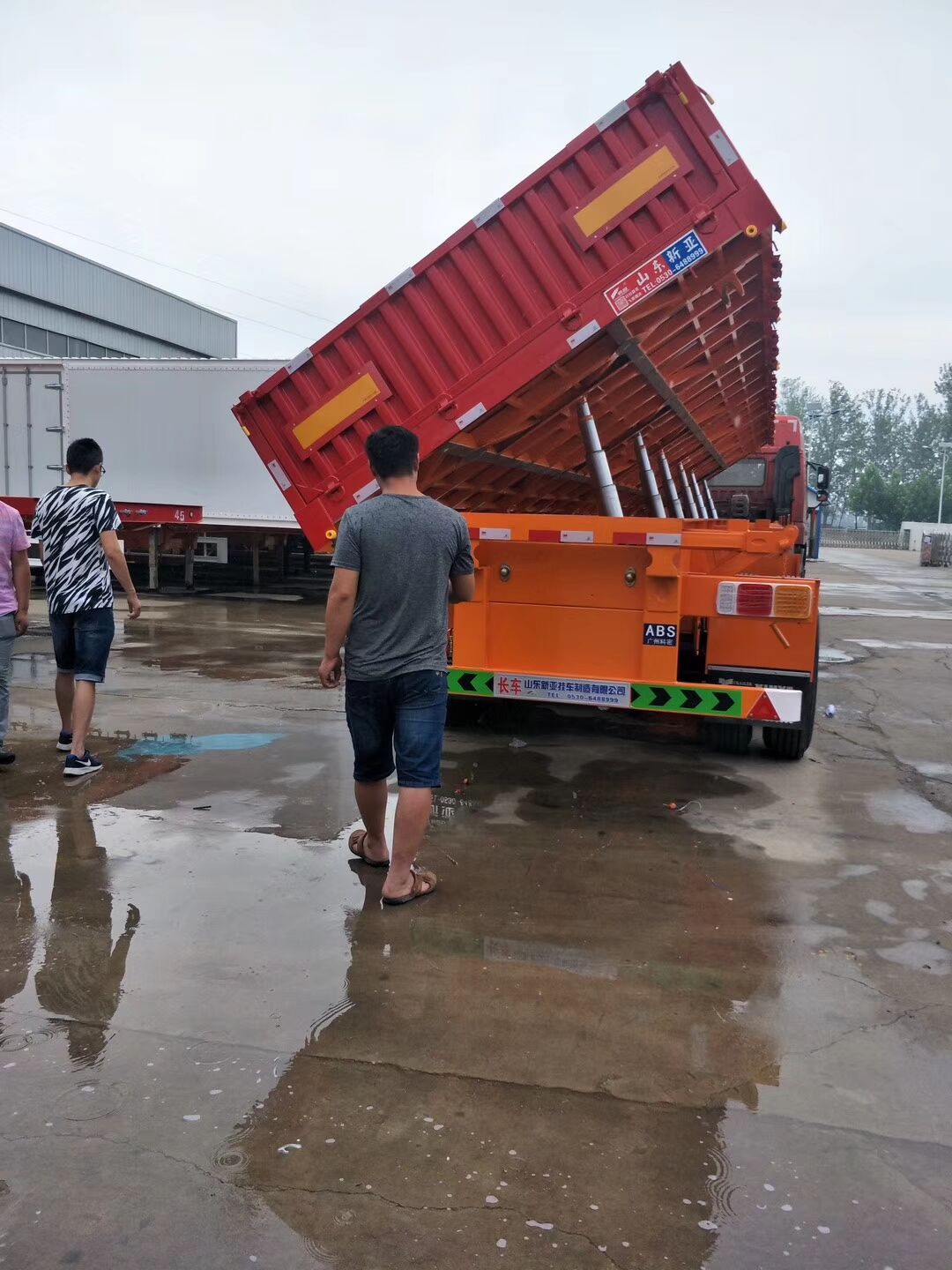

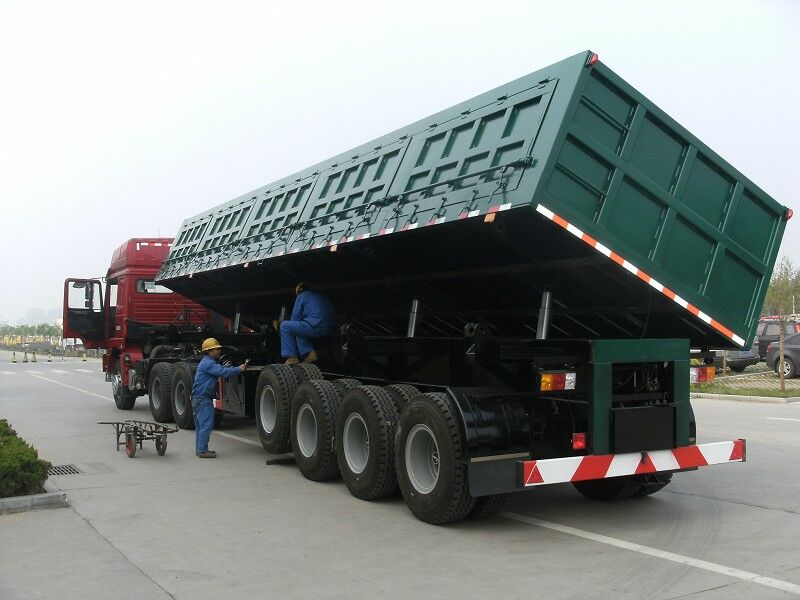

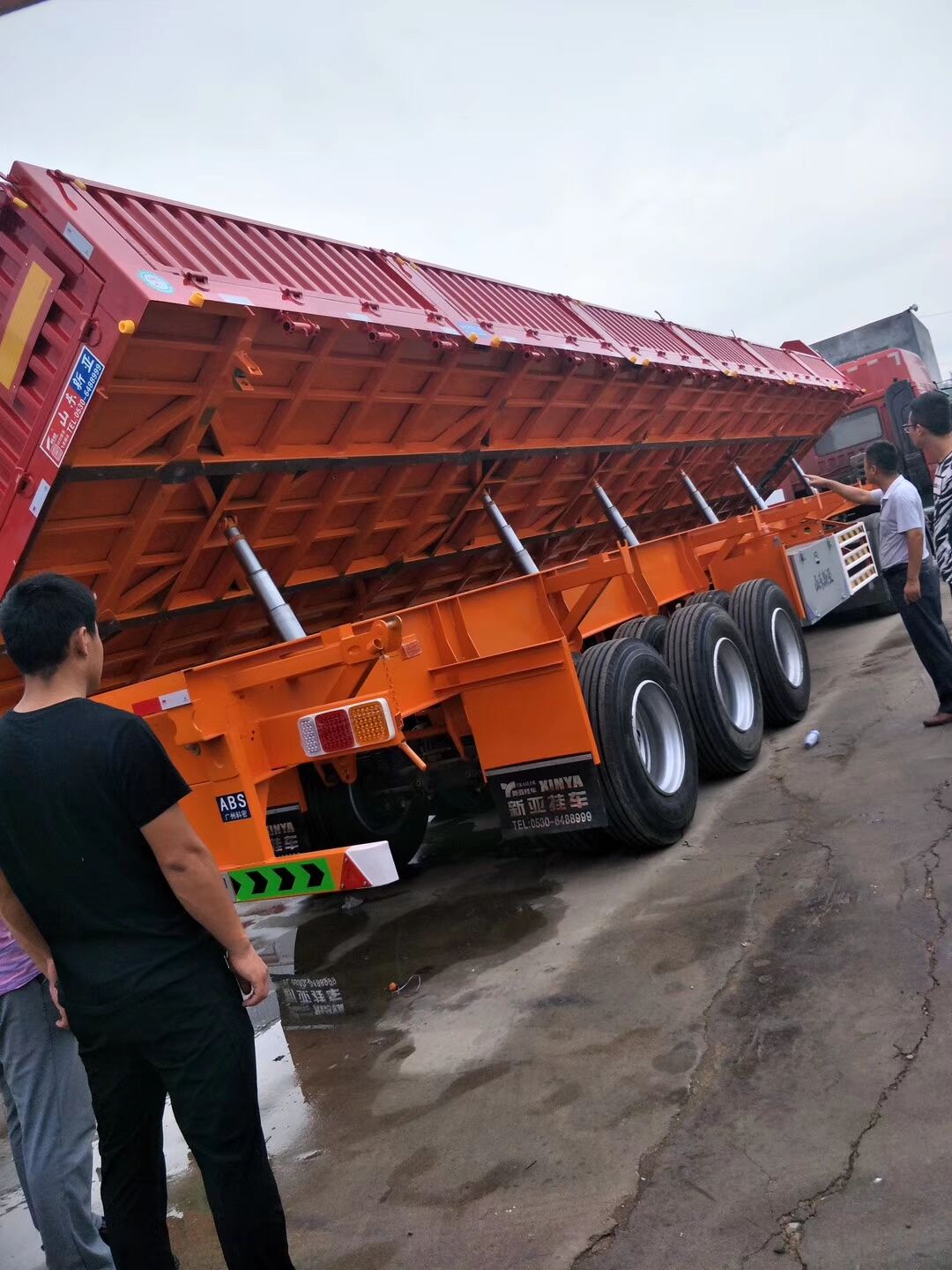

| Side Dump Semi-trailer-70T |
| Item | Side Dump Semi-trailer-70T |
| Tare Weight | 12000kg |
| Pay load | 70000kg |
| Overall dimension(mm) | 13000mm×2500mm×3300mm |
| Chassis Specification |
| Chassis frame | I beam,Q345B, high tensile steel |
| Axles | FUWA brand 16 T /PER , 3 AXLES |
| Tire | 12R20,radial tubeless tyre, 12pieces |
| Spare tyre | One set tyre,including one carrier |
| Rim | 8.5 12pieces |
| Suspension | Germany design mechanical suspension |
| Spring leaf | 13 pieces |
| King pin | JOST 2" |
| Landing gear | JOST brand,two speed, manual |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank |
| Accessories | One piece tool box |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Dump body |
|
| Side wall height | 2200mm |
| Cylinders | 5+1 hydraulic cylinders |
| Fence body material | Q345 steel |
| Platform thickness | 4mm |
| Sidewall thickness | 1.5mm |
