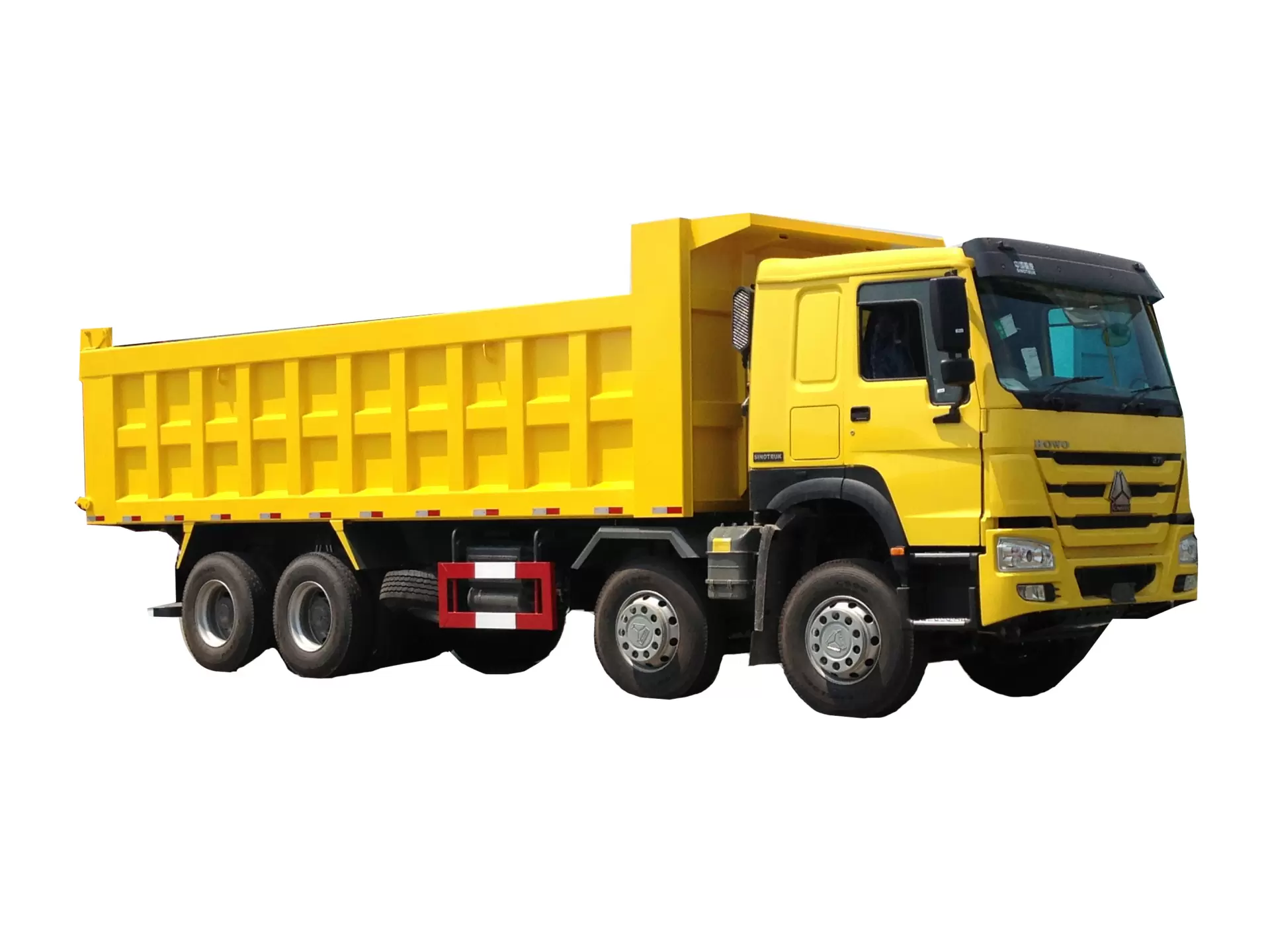

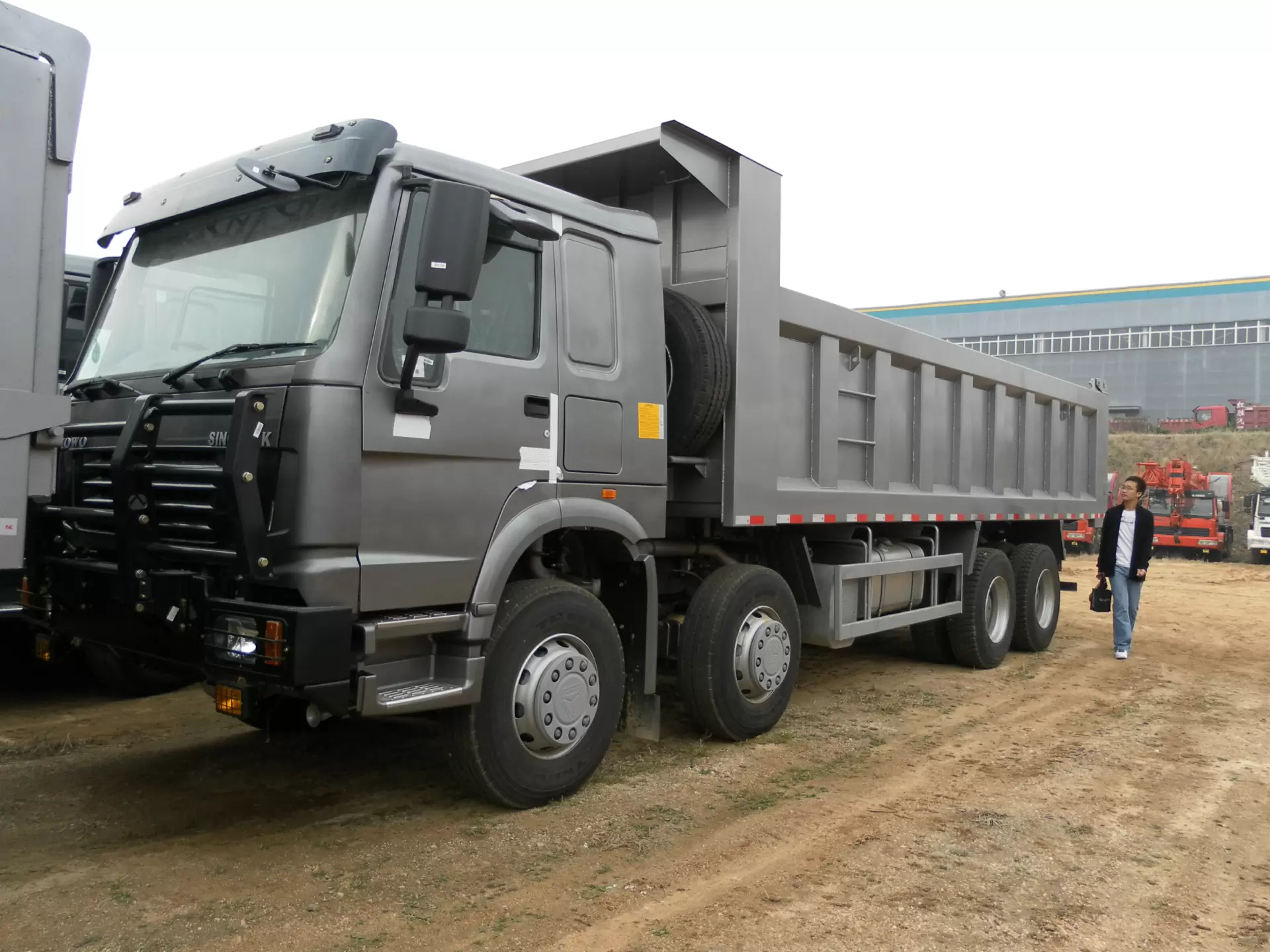

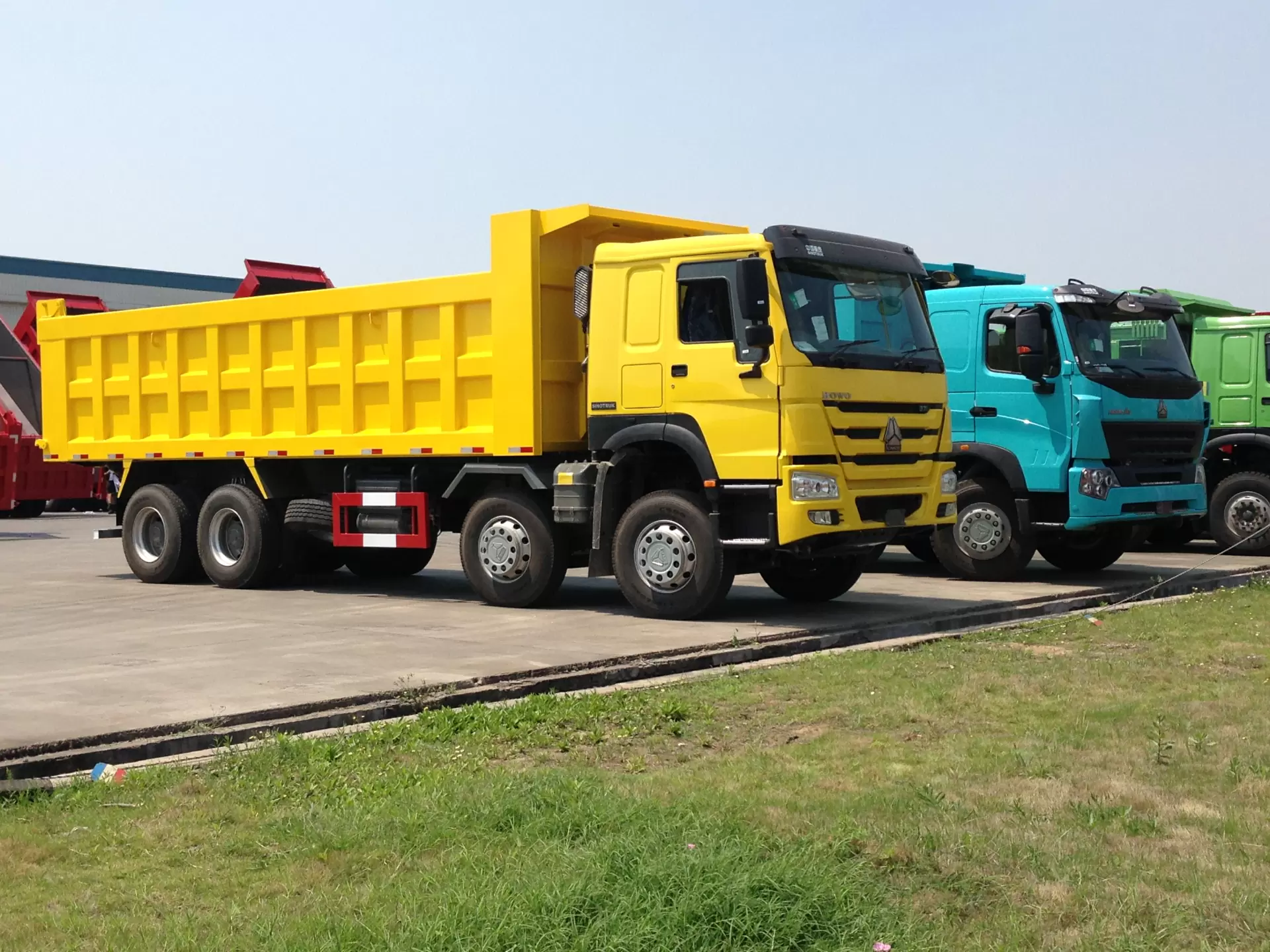

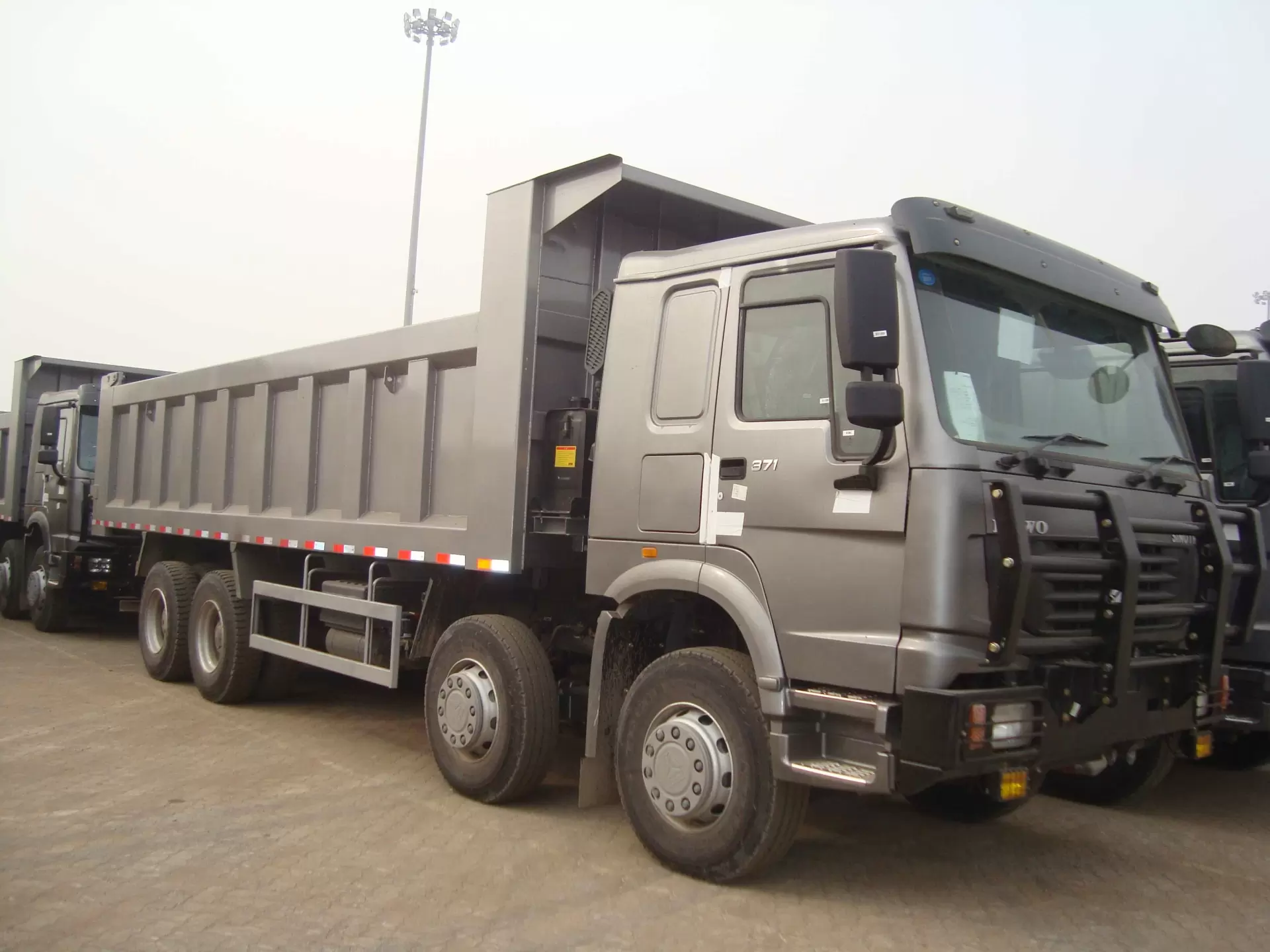

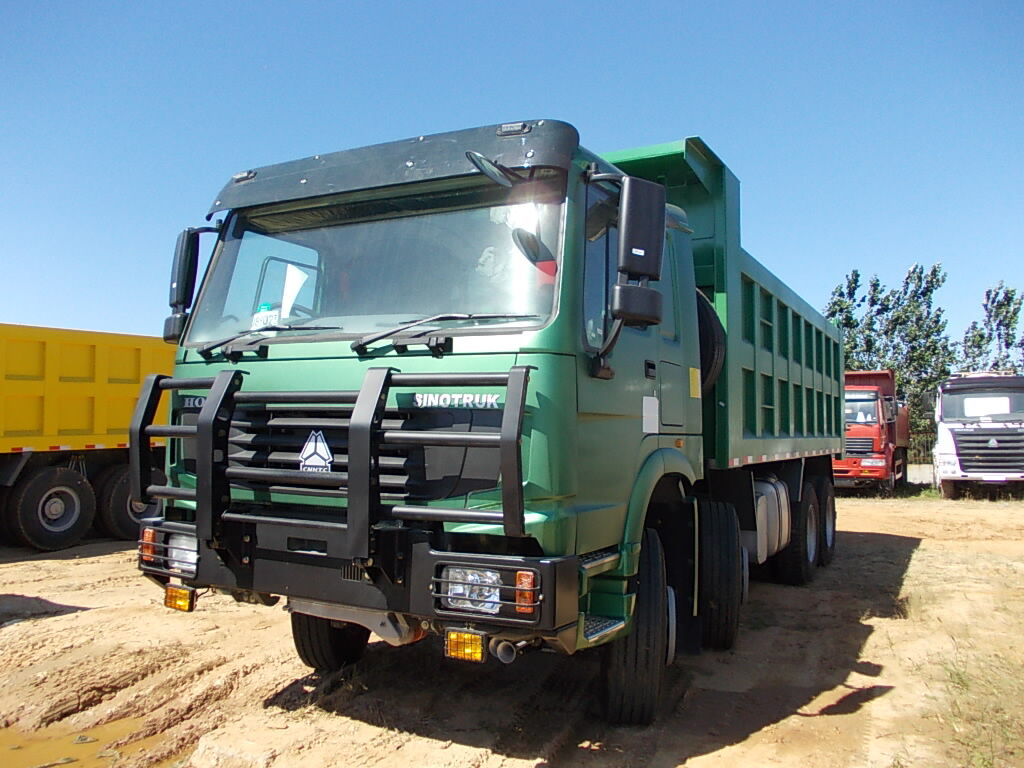

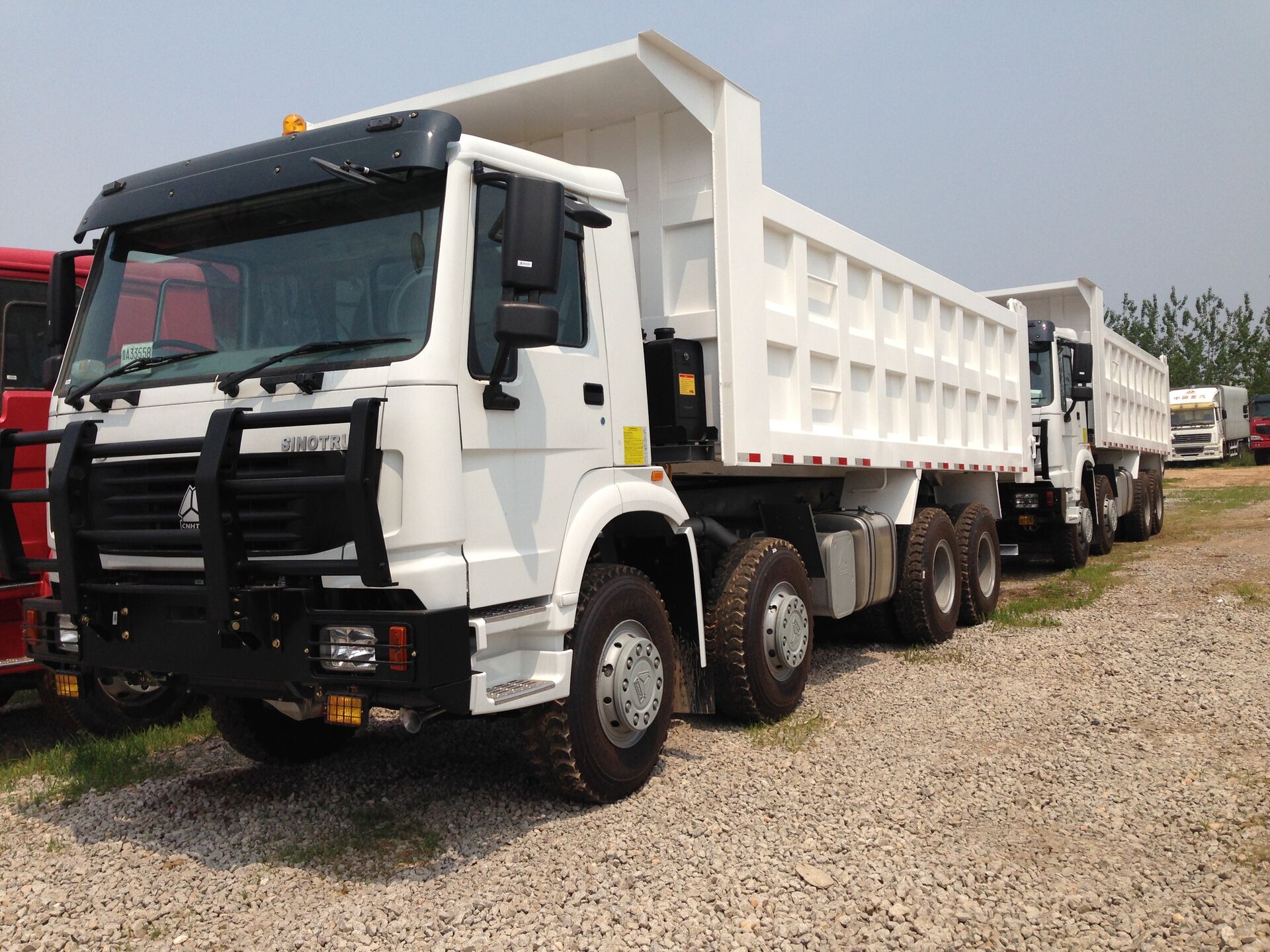

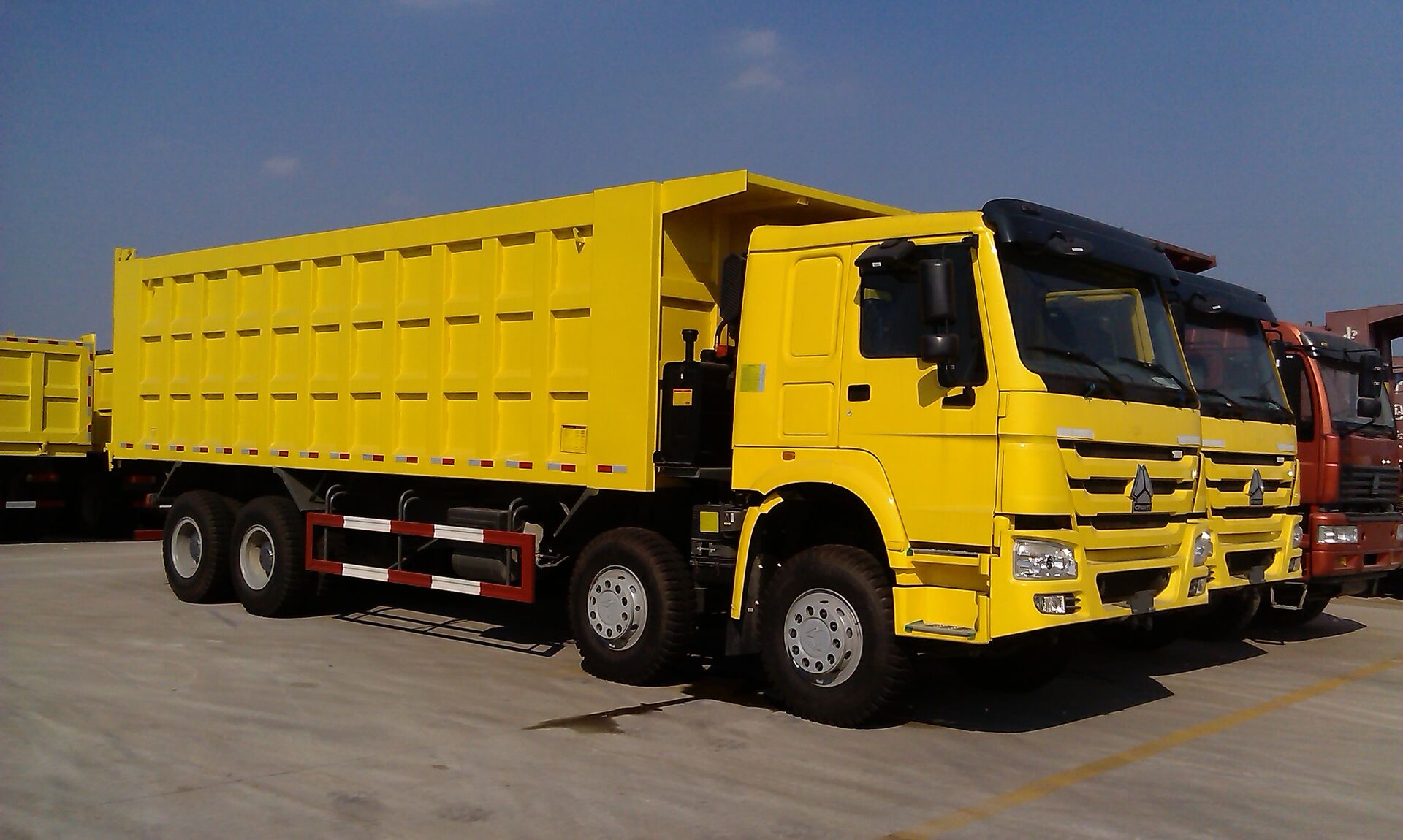

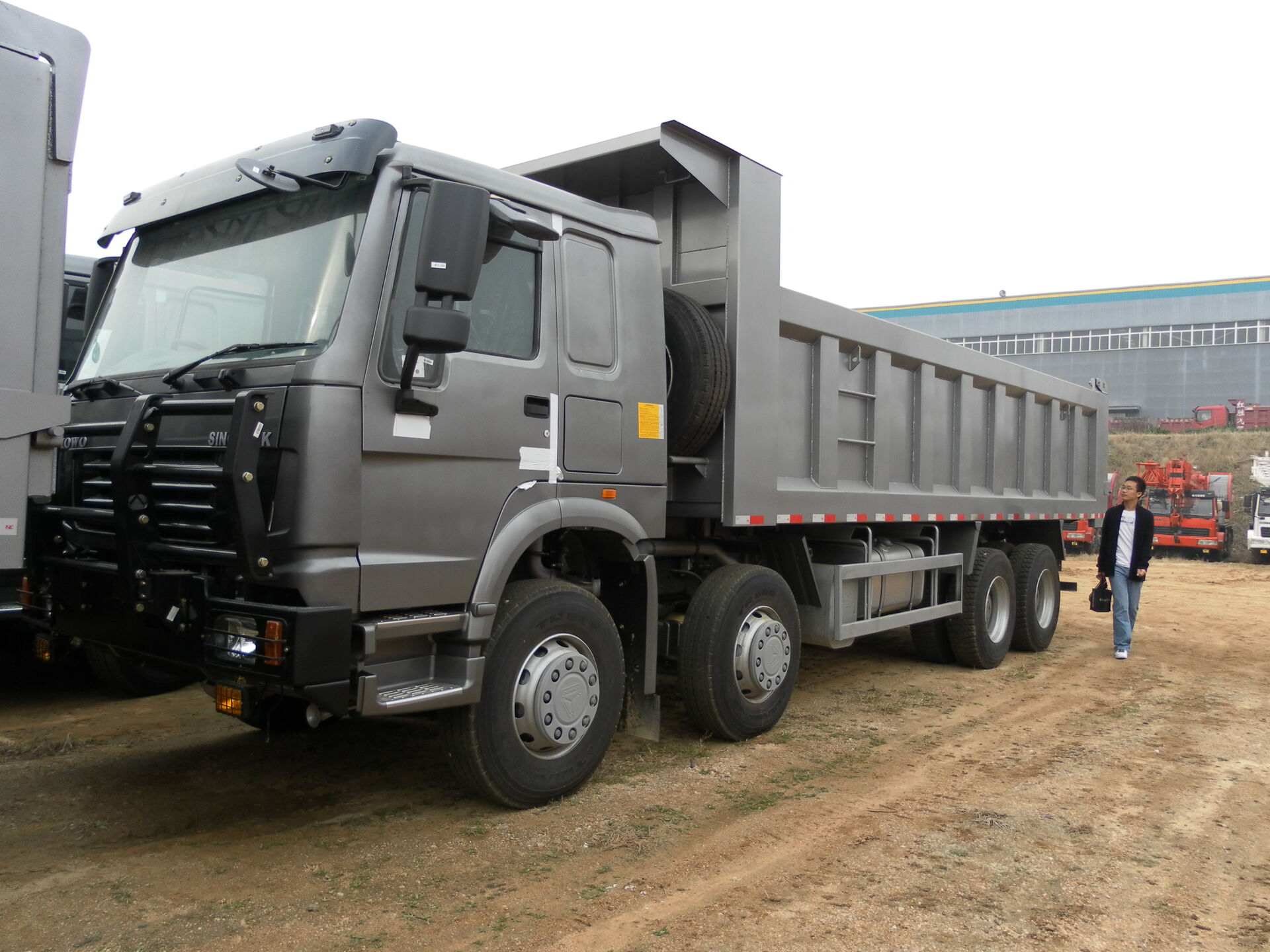

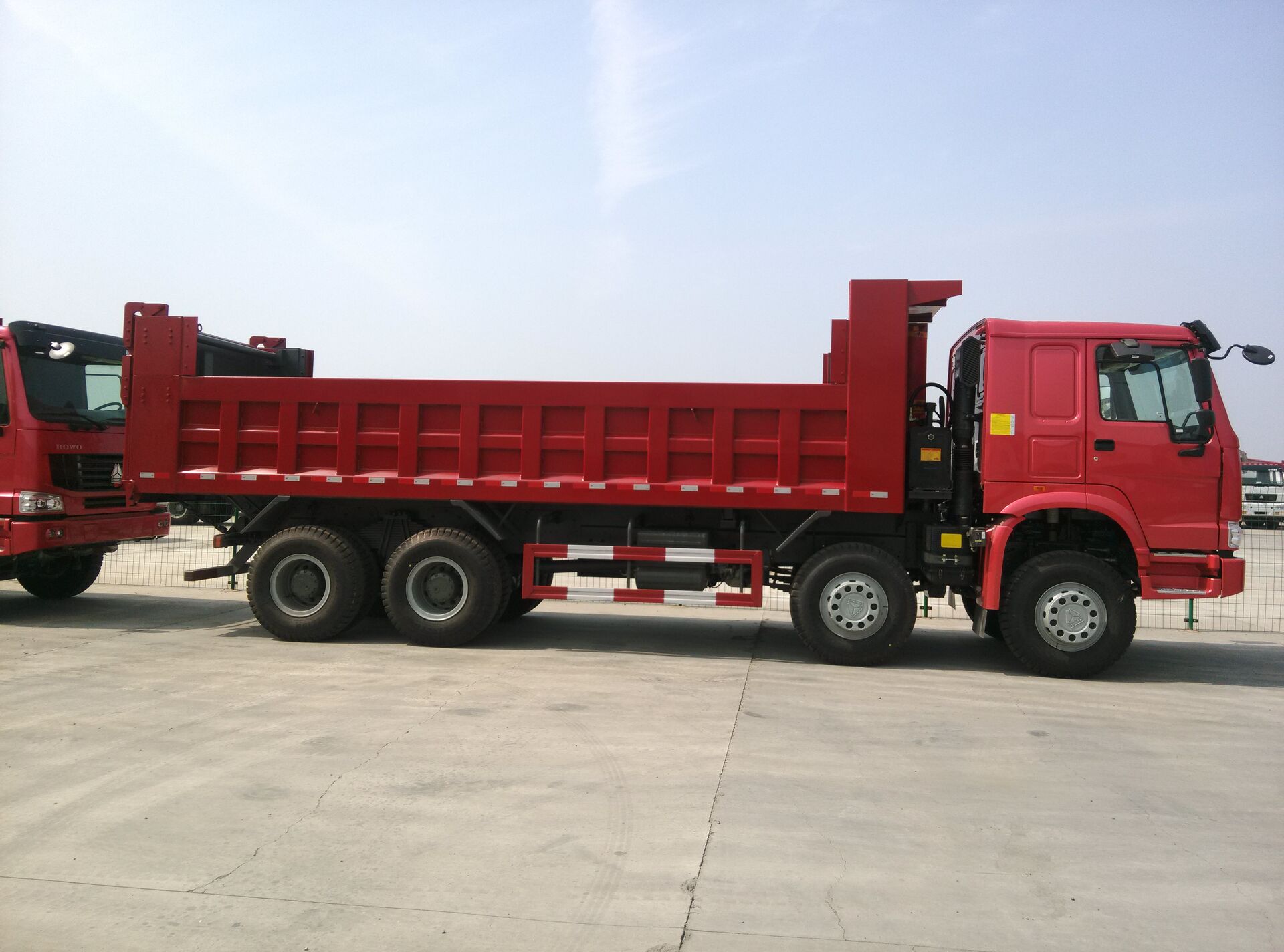

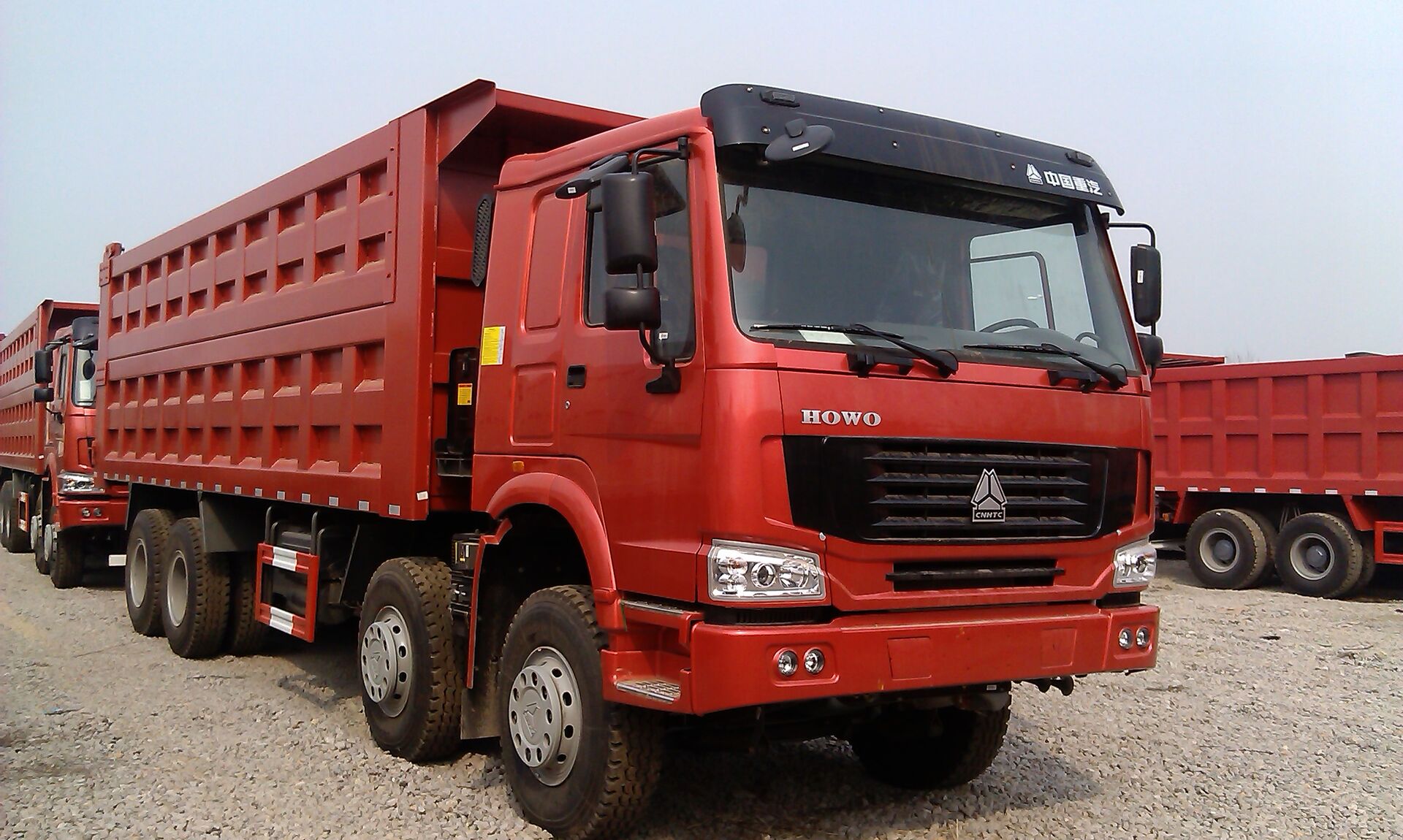

| 8x4 HOWO dump truck ZZ3317N4867D1 |
| Key Performance | 371 HP Engine, Cargo body 8.5Mx2.3Mx1.2M（1.4M）, 23.5m³(27m³ , |
| bottom of body: 12mm, side of body: 10mm. for large stone, |
| bottom of body: 8mm, side of body: 6mm. for ordinary earth. |
| Thickness of bottom and side can be customized. |
| 12.00R20 radial ply tyre |
| Performance | Gross weight | 31000 Kg |
| Chassis dead weight | 15290 Kg |
| Permissible loading capacity | 15580 Kg |
| Wheel base | 1800+4800+1350mm |
| Overall dimension | 11445+2496+3190mm |
| Front overhang/Rear overhang | 1500/1995 |
| Front wheel track | 2022 |
| Rear wheel track | 1885 |
| Approach/Departure angle | 18/25° |
| Max. driving speed | 75Km |
| Maximum grade ability (%) | 37° |
| Fuel consumption(L/100km) | 35 |
| Engine | Make: SINOTRUK |
| Engine model: : WD615.47, Euro II emission standard |
| Maximum output: 371hp(273Kw) at 2200 rpm according to DIN |
| Maximum torque: 1500Nm at 1100~1600 rpm |
| 4 stroke direct injection diesel engine,6 cylinder in-line with water cooling, turbo-charging & inter cooling |
| Bore: 126mm; Stroke: 130mm; |
| Displacement: 9.726L; Compression ratio: 17:1 |
| Specific fuel consumption: 195g/kWh; Engine oil filling quantity: 23L |
| Cooling system filling quantity (long-term filling): 40L |
| Thermostat opening temperature: 80°C |
| Twin cylinder air compressor Rigid fan |
| Option: |
| Thermostat with 71 °C opening begin |
| Silicon oil fan |
| Transmission | 19710 |
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance. |
| Driving axle | AC16 drum brakes, Casted axle housing, central single reduction with planetary wheel reduction (hub reduction)and differential locks between wheels and axles. |
| Load capacity: 16ton. Ratio: 4.77, Option: 5.45 |
| Front axle | HF9 drum brakes, load capacity: 9ton |
| Steering box | ZF8118 hydraulic steering with power assistance |
| Cab | HW76 with one berth, right hand drive and safety belt |
| Air conditioner | Yes |
| Tire | 12.00R20 Option: 315/80R22.5 |
| Chassis | Frame: U-profile parallel ladder type with section of 300×80×8 mm and reinforced sub frame, all cold riveted cross members. |
| Front suspension: 90mm*14mm*10pcs semi-elliptic leaf springs with hydraulic telescopic |
| double-action shock absorbers and stabilizer |
| Rear suspension: 25mm*12pcs semi-elliptic leaf springs with bogie spring and stabilizer |
| Fuel tank: with 300 L fuel tank with locking fuel cap |
| With one spare wheel |
| Cargo Body | Dimension of container | 8500*2300*1200mm(1400mm) |
| Thickness of container | Bottom: 12mm, Side: 10mm |
| Bottom: 8mm, Side: 6mm(optional) |
| Remarks | Exhaust pipe up | Yes |
| Alert sound when back up | Yes |
| Enhanced backboard beam | Yes |
| Alert light | Yes |
